Make every product with care
Also called a Rigid High Speed Door
Fast opening and closing: spiral design realizes high-speed operation and improves logistics efficiency.
High space utilization: the door panel rolls up and down along the track without taking up extra space, suitable for limited space.
Strong durability: Adopting high-quality materials, the structure is sturdy and durable, with long-term stable performance.
Safe and reliable: Equipped with safety features to reduce the risk of accidents and safeguard personnel and equipment.
|
Features |
Suitable for outdoor doors that are frequently opened and closed, with functions such as fast speed, strong wind resistance, and good thermal insulation performance |
|
Door curtain material |
0.7mm aluminum alloy door panel, filled with polyurethane foam for heat preservation inside, and the thickness of the door panel is 42mm |
|
Door frame material |
2.5mm galvanized steel paint frame |
|
Control system |
Standard microcomputer control system\Open, Close, Stop buttons\Switch man-machine English interface\LCD display, fault code prompt |
|
Security system |
Photoelectric protection (standard configuration)\Wireless safety bottom edge protection (standard)\Grating protection (optional) |
|
Drive system |
Servo motor, reducer |
|
Motor position |
Default right |
|
Wind resistance level |
11 winds (national standard) |
|
Maximum speed |
2.0m/s |
|
Emergency door opening |
Support |
Make every product with care
Advanced spiral guides allow the door to open and close extremely fast (up to 2.0 m/s), speeding up traffic flow.

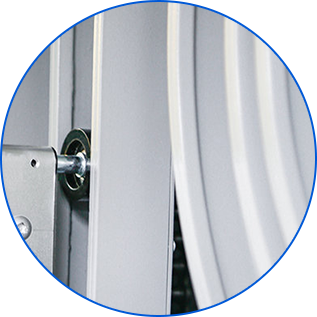

Special rollers ensure the door runs smoothly and very quietly, making the work area more pleasant and lasting longer.
Multiple safety sensors create an invisible light barrier that instantly detects people or objects, stopping the door to prevent accidents.
Thick, strong aluminum panels filled with foam keep heat/cold in or out effectively (saving energy) and reduce noise.
A precise and reliable control system allows for fast, smooth operation and is built for very frequent use (over a million times).
If the power goes out, a simple manual release lets you easily push the door open by hand.
● Warehousing and distribution centers
● Manufacturing and production facilities
● Automotive dealerships and service centers
● Pharmaceutical and cleanroom environments
● Cold storage facilities
● Retail and commercial spaces
● Airports and transportation hubs
Case Description: A U.S. food processing plant needed a door system that would increase productivity on the shop floor, and they chose SEPPES' High Speed Door series. The slow opening and closing speeds of traditional door systems were interfering with the operation of the production line, and the installation of SEPPES' High Speed Door dramatically reduced opening and closing times and improved the overall efficiency of the production line.
Case Description: A high-tech electronics manufacturing company in Japan faced with the problem of frequent entry and exit of production lines chose SEPPES' High Speed Zipper Door, a door system that has helped the company improve the safety and operational efficiency of its production lines due to its superior sealing performance and high speed.
Case Description: A large French warehousing company looking for a solution to save space and increase the speed at which doors open and close chose SEPPES' High Speed Spiral Door, which provides high speed opening and closing without taking up additional space, greatly improving the efficiency of warehouse access.
Case Description: A large retail distribution center in Italy selected SEPPES' High Speed Stacking Door to meet the demands of high-frequency inbound and outbound shipments, and the door's high opening and closing speeds and compact design made it a perfect fit for the distribution center's needs, resulting in a significant increase in work efficiency.
High Speed Operation: The high speed spiral door opens at speeds adjustable from 0.8 to 1.5 meters per second.
Energy Efficiency: Compared to traditional industrial doors, these high speed hard doors can save more than 87% energy by minimizing air circulation.
Thermal Insulation: The doors are constructed with lightweight double aluminum alloy panels filled with high-density polyurethane foam, providing excellent thermal insulation.
Wind Resistance: Designed to withstand wind speeds up to 32 m/s (equivalent to level 12), ensuring durability and stability in adverse weather conditions.
Safety Features: Equipped with standard safety devices such as infrared safety anti-pinch protection and optional built-in safety light curtains, ensuring high safety standards.
Automatic Reset Mechanism: The doors feature an automatic derailment repair system that resets the door without manual intervention after being derailed by external forces.
Environmental Protection: High speed doors contribute to environmental protection by integrating features such as heat preservation, sealing, and energy saving
SEPPES is a brand manufacturer in the industrial equipment industry. It has developed nearly 70 series of industrial high speed door, sectional door, high speed spiral door, three-in-one industrial defense doors, warehousing logistics loading dock leveler and dock shelter, cold storage insulation high speed doors and special explosion-proof industrial doors. SEPPES continues to innovate in technology in accordance with European industry standards. It has a number of product core technologies and has passed the EU CE and international authority SGS certification. The market covers the world and exports to more than 50 countries and regions.
High-speed spiral doors offer increased efficiency, enhanced security, reduced maintenance, energy savings, noise reduction, and weather resistance, making them a valuable investment for various industries and applications.
High-speed spiral doors are designed with tight seals that minimize air leakage, reducing energy consumption and costs. Their rapid opening and closing speeds also help maintain temperature control, particularly in climate-sensitive environments such as cold storage facilities.
Typical safety features in high-speed spiral doors include built-in sensors that detect obstacles in the door's path, safety edges that stop and reverse the door upon contact with an object, and a manual release mechanism for emergency situations.
High-speed spiral doors are suitable for a wide range of industries and applications, such as warehousing and distribution centers, manufacturing and production facilities, automotive dealerships and service centers, pharmaceutical and cleanroom environments, cold storage facilities, retail and commercial spaces, and airports and transportation hubs.
Yes, many manufacturers offer customization options for high-speed spiral doors, including a variety of sizes, colors, and finishes to suit individual needs and aesthetic preferences.
When selecting a high-speed spiral door manufacturer, consider factors such as product quality, customization options, technical support, after-sales service, warranty, and the manufacturer's reputation in the industry. It is essential to select a manufacturer that can meet your specific needs and provide reliable, efficient, and secure high-speed spiral door solutions.
