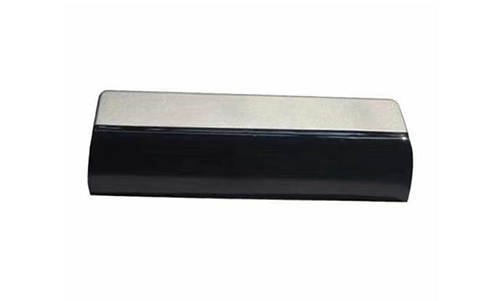

The radar sensor is a commonly used automatic door opening method for fast doors. When the movement of a person or an object is detected by a radar sensor, the fast door can be opened automatically. This sensing method is very convenient and is used in many factories.
|
Parameter |
Details |
|
Technology |
Microwave Doppler Radar |
|
Transmitter frequency |
24.150 GHz |
|
Transmitter radiation power |
<20 dBm EIRP |
|
Transmitter power density |
≤5 mW/cm² |
|
Detection mode |
Sports |
|
Minimum detection speed |
5 cm/s (measured in the sensor axis direction) |
|
Power supply voltage |
12 V to 24 V AC ±10%; 12 V to 24 V DC +30% / -10% |
|
Power frequency |
50 to 60 Hz |
|
Maximum power consumption |
<2 W |
|
Output |
Relay (potential-free changeover contact) |
|
Maximum contact voltage |
42 V AC/DC |
|
Maximum contact current |
1 A (resistance) |
|
Maximum conversion power |
30 W (DC) / 42 VA (AC) |
|
Installation height |
1.8 m to 3 m |
|
Protection level |
IP54 |
|
Temperature range |
-20°C to +55°C |
|
Dimensions |
120 mm (L) x 80 mm (H) x 50 mm (W) |
|
Tilt angle |
0° to 90° (vertical); -30° to +30° (horizontal) |
|
Material |
ABS |
|
Weight |
165 g ± 120 g |
|
Cable length |
2.5 m |
|
Applicable specifications |
EN 300 440-2 V1.4.1, EN 301 489-1 V1.9.2, EN 301 489-3 V1.6.1, EN 62311, EN 62479 |
● Automatic Door Control:
It can be used to detect moving objects approaching an automatic door and trigger the door's opening and closing mechanism. The radar sensor's characteristics make it well-suited for efficiently detecting the approach of people or vehicles.
Case Description: A U.S. food processing plant needed a door system that would increase productivity on the shop floor, and they chose SEPPES' High Speed Door series. The slow opening and closing speeds of traditional door systems were interfering with the operation of the production line, and the installation of SEPPES' High Speed Door dramatically reduced opening and closing times and improved the overall efficiency of the production line.
Case Description: A high-tech electronics manufacturing company in Japan faced with the problem of frequent entry and exit of production lines chose SEPPES' High Speed Zipper Door, a door system that has helped the company improve the safety and operational efficiency of its production lines due to its superior sealing performance and high speed.
Case Description: A large French warehousing company looking for a solution to save space and increase the speed at which doors open and close chose SEPPES' High Speed Spiral Door, which provides high speed opening and closing without taking up additional space, greatly improving the efficiency of warehouse access.
Case Description: A large retail distribution center in Italy selected SEPPES' High Speed Stacking Door to meet the demands of high-frequency inbound and outbound shipments, and the door's high opening and closing speeds and compact design made it a perfect fit for the distribution center's needs, resulting in a significant increase in work efficiency.
High Sensitivity: It can detect even slow-moving objects with a minimum detection speed of 5 cm/s, ensuring reliable operation in various environments.
Wide Detection Range: The radar can operate within a range of 1.8 to 3 meters in height, making it versatile for different door sizes and installations.
Accurate Detection: It provides precise motion detection, which helps in reducing false activations caused by non-relevant movements.
Energy Efficiency: With a maximum power consumption of less than 2W, it is energy-efficient, contributing to lower operational costs.
Durability: The radar is housed in a robust ABS material with an IP54 protection level, making it resistant to dust and water, suitable for both indoor and outdoor installations.
Adaptability: It supports various power supply voltages (AC and DC) and operates in a wide temperature range (-20°C to +55°C), ensuring reliable performance in diverse environmental conditions.
Flexible Installation: The radar’s adjustable tilt angles (0° to 90° vertical, -30° to +30° horizontal) allow for easy customization during installation to optimize coverage.
Safety and Compliance: It adheres to international standards (EN 300 440-2, EN 301 489-1, EN 62311, etc.), ensuring it meets safety and electromagnetic compatibility requirements.
SEPPES is a brand manufacturer in the industrial equipment industry. It has developed nearly 70 series of industrial high speed door, sectional door, high speed spiral door, three-in-one industrial defense doors, warehousing logistics loading dock leveler and dock shelter, cold storage insulation high speed doors and special explosion-proof industrial doors. SEPPES continues to innovate in technology in accordance with European industry standards. It has a number of product core technologies and has passed the EU CE and international authority SGS certification. The market covers the world and exports to more than 50 countries and regions.
For common order, 10-20days only
We provide 13 month warranty for all doors and accessories.
Yes. We do provide OEM Service
Plywood case or Cardboard,Accordingly to your choose
We accepte 1 set as trail order
